PipeMaster, the conduit bending calculator app for electricians

PipeMaster: Offset & Saddle

PipeMaster works next to the tape measure, not instead of it. Type the stub height, offset or obstruction the way you read it off the tape — whole inches, a fraction, whatever — and it hands back the mark. The 90°, offset and bend reference calculators cost nothing; PipeMaster Pro adds the harder bends and four NEC electrical calculators.

Download on the App Store Get it on Google Play Android: Conduit Bending Calculator
On a computer? Scan with your phone camera to install.
Version 1.3.0 Updated 2026-10-24Requires iOS 17.0Size 5 MBPrice Free For iPhone and Android
  1. Conduit Bender: PipeMaster screenshot 1
  2. Conduit Bender: PipeMaster screenshot 2
  3. Conduit Bender: PipeMaster screenshot 3
  4. Conduit Bender: PipeMaster screenshot 4

What can you calculate?

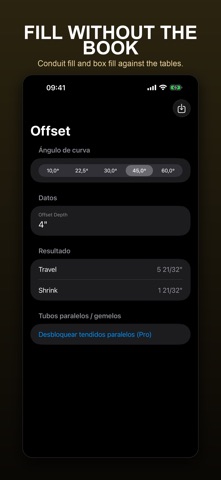

  • Free, under Calculators: 90° / Stub-Up (stub height minus your deduct, plus gain), Offset (distance between bends and shrink) and Bend Reference, a multiplier and shrink card with a custom angle from 1° to 89°.

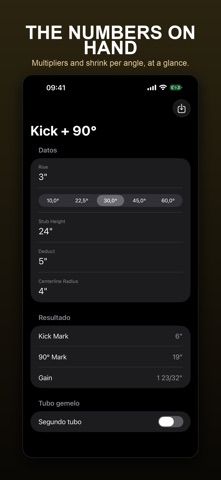

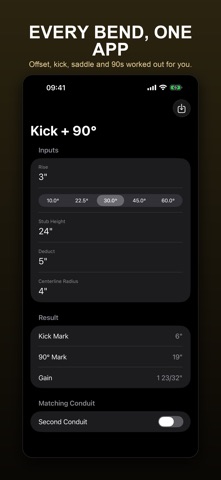

  • Pro, under Pro Calculators: Rolling Offset, Kick, Kick + 90°, 3-Point Saddle, 4-Point Saddle and Segmented 90°.

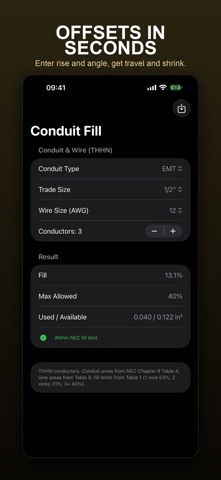

  • Pro, under Electrical (Pro): Voltage Drop, Box Fill, Conduit Fill and Ampacity, built on NEC tables and AWG sizes.
  • Job tools: History for saved results, Projects for notes and a hand-typed material list, and Bender Profiles for each bender's take-up and radius (adding your own needs Pro).

Quick start: your first offset

  1. Open Offset from Calculators.
  2. Pick an angle under Bend Angle, for example 30.0°.
  3. Tap the Offset Depth value and type whole inches, a numerator and a denominator: 5 3/16" is 5, 3 and 16.
  4. Read Distance Between Bends and Shrink: a 6" offset at 30° gives 12" and 1 19/32".
  5. Tap Save to keep the result in History.

Free version and PipeMaster Pro

Free gets you the three calculators above, History, one project and six generic EMT bender profiles — with ads between taps. PipeMaster Pro adds the rest: the Pro bends, the four electrical calculators, your own bender profiles, unlimited projects, PDF export and no ads, as a weekly or yearly subscription, or a one-time lifetime buy if you'd rather pay once and be done with it.

Offline, no account, one permission

Every calculation runs on the phone, so a basement with zero bars doesn't matter — the internet is only there for ads and for buying or checking Pro. No sign-up, no account, and your numbers stay on the iPhone with no sync to lose track of. The one prompt you'll see is App Tracking Transparency, and it's only for ads in the free version.

Inches or millimetres

Set Settings > Units to Inches or Millimeters. Bend results round to the nearest 1/32" in imperial, or to whole millimetres in metric — the electrical calculators don't follow that switch, though; they stay in AWG, amps, feet, volts and cubic or square inches regardless.

What PipeMaster does not do

  • Offsets, rolling offsets, kicks and saddles are locked to five angles: 10°, 22.5°, 30°, 45° and 60° — no custom angle for those.
  • The calculators do not read your bender profiles: you type the deduct yourself.
  • No bend diagrams, camera or AR measuring, and no springback correction.
  • iPhone and Android: no iPad layout, Apple Watch or Mac version.
  • The electrical calculators follow the US NEC, not the Canadian CEC or IEC rules.

Questions people ask about PipeMaster

Is PipeMaster free?
Free to download. The 90° stub-up, offset and bend reference calculators work with ads and no payment. Rolling offsets, kicks, saddles, segmented 90s, the electrical calculators, PDF export and ad removal all need PipeMaster Pro.
How accurate are the marks?
The math is plain trigonometry, rounded to the nearest 1/32" or to whole millimetres. What varies is your bender's real take-up, springback and how carefully you line up the mark, so bend a test piece with a new bender before you trust the number.
Can I use it in millimetres?
Yes for the bend calculators: set Units to Millimeters and inputs and results are in mm. The electrical calculators stay in NEC units such as AWG and feet.
Why does PipeMaster ask to track me?
Only for the ads in the free version. If you decline, every calculator works the same and the ads are non-personalized; any Pro purchase removes them.
Is there an iPad or Android version?
Android: yes. PipeMaster is on Google Play, free, with a banner ad, every calculator unlocked (no Pro purchase there) and results shared as text rather than PDF. The iPhone app is for iOS 17 or later, in portrait or landscape. There is no iPad layout and no Mac or Apple Watch app.

Read all the questions and answers →

Free and Pro

Free

  • 90° / Stub-Up calculator (mark = stub height - deduct, plus gain)
  • Offset calculator at 10°, 22.5°, 30°, 45° or 60° (distance between bends and shrink)
  • Bend Reference card (multiplier and shrink per inch for the five standard angles plus one custom angle from 1° to 89°)
  • Save any result to History (Save button on every calculator)
  • One project with notes and a material list
  • Viewing the six built-in generic EMT bender profiles
  • Global Units setting (Inches / Millimeters)
  • Bend Level (phone as an angle gauge)

Pro

  • Rolling Offset calculator
  • Kick and Kick + 90° calculators
  • 3-Point Saddle and 4-Point Saddle calculators
  • Segmented 90° calculator
  • Parallel / Matching Conduit section on the Offset screen
  • Electrical calculators: Voltage Drop, Box Fill, Conduit Fill, Ampacity
  • Adding your own bender profiles (the + button in Bender Profiles)
  • Unlimited projects (free allows one)

Pro is optional. Everything in the free list works without it.

What's new in 1.3.0

• New Bend Level: lay your phone on the pipe and read the angle, with a springback allowance. • Offsets now give both marks measured from the end of the pipe, with first or second bend critical. • Pick a bender profile in 90° and Kick + 90° and the take-up and radius fill in for you. • Fixed parallel runs: the shift on the second conduit now uses spacing x tan(angle / 2). • New monthly plan. Weekly, monthly, yearly and pay-once plans are all on the purchase screen, in your language. • More apps from us in the main list.

Privacy and support

PipeMaster does not require an account. Read the privacy policy and the terms for this app, or write to us if something is wrong.

Made by a small independent developer. Questions? Write to us from the support page.
